MM AQUA - MBBR Media:

At MM Aqua Technologies, we design and manufacture and supply Moving Bed Bio Reactor (MBBR)/ Fluidized Aerated Bed Reactor (FAB) media for Municipal & industrial wastewater treatment.

Excess biomass sloughs off from the media and is washed out of the process with the treated effluent. Several process combinations have been realized in upgrading activated sludge treatment plants. The existing tanks can be either retrofitted to MBBR tanks or they are preceded by a so-called roughing MBBR reactor. When a pure MBBR process is employed, a typical overall treatment design consists of pre-treatment (screening) followed by one or more MBBR tanks, where the degradation processes of soluble matter take place. The final stage of the treatment is normally the particle separation.

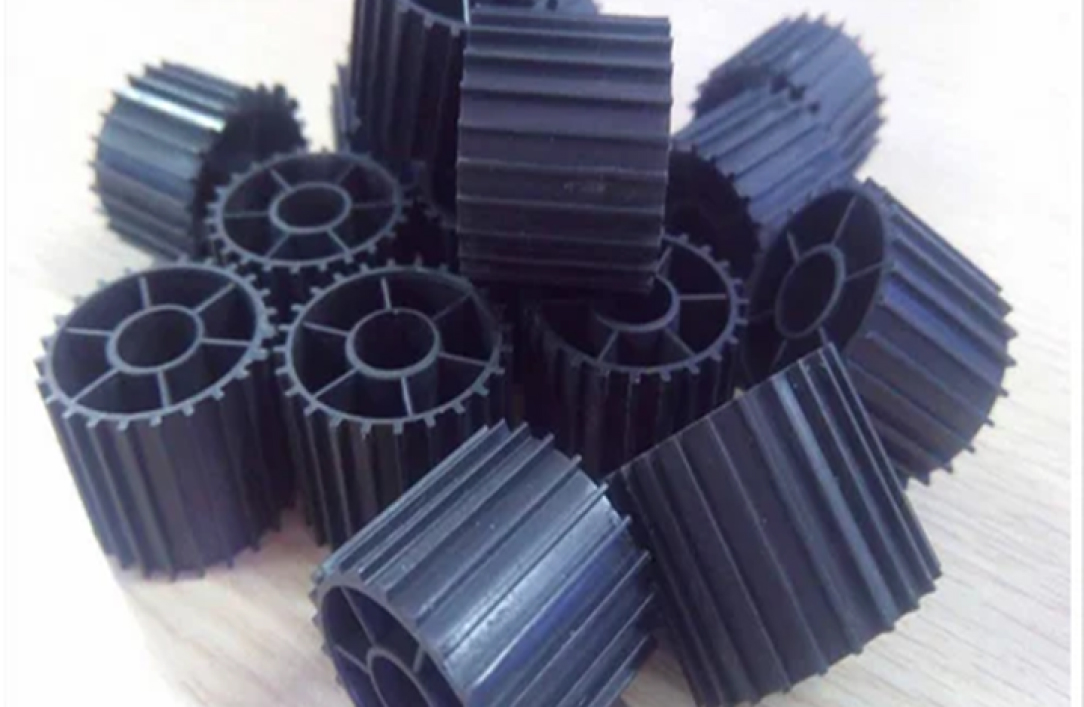

MM AQUA - MBBR Media

  • 3 L Concept:
  • Low Initial Capital Costs
  • Low Operating Costs
  • Low Energy Cost/Consumption
  • 3 R Concept:
  • Reliable Performance
  • Resistance to Hydraulic and Organic Shock Loads
  • Retention time is high due to cross flow Configuration

MM AQUA - MBBR Media


SL. NO FEATURES SPECIFICATION
1 MATERIAL HDPE PP
2 TYPE Virgin and Non Virgin Virgin and Non Virgin
3 COLOUR Black & White Black & White
4 DENSITY 0.93 - 0.97 g/cm3 0.89-0.92 g/cm3 PP White & 0.92-0.98 g/cm3-PP Black
5 DIMENSION (Diameter x Length) 25mm X 12 mm
25mm X 10 mm		 25 mm X 20 mm
16mm X 22 mm
(Tolerance ± 1mm)
6 TOTAL SURFACE AREA 350 m2/m3 - 800 m2/m3 350 m2/m3 - 600 m2/m3
7 PSA/TSA 90% 70%
8 SHAPE Cylindrical with external fins Cylindrical with external fins
